美国Clack公司提供多款家用中央软水机及中央净水机用多路阀，最为常见的是WS1TC和WS1CI两款。如下图所示（请留意：标准产品不带图上的旁通阀，红色把手的旁通阀为选配件）。
1” Water Specialist Valve

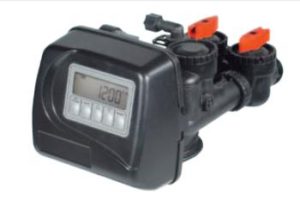

| INTERNATIONAL |  WS1 |

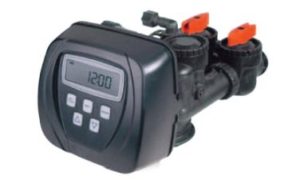

 WS1CI |
| Service @ 1 bar/15 psi drop Backwash @ 1.7 bar/25 psi drop |
102 lpm, 6.1 m3/h (includes meter and bypass) 102 lpm, 6.1 m3/h (includes bypass) |
102 lpm, 6.1 m3/h (includes meter and byp 102 lpm, 6.1 m3/h (includes bypass) |
| Tank Applications: Softener Filter (1) |
6” – 21” diameter 6” – 21” diameter |
6” – 21” diameter 6” – 21” diameter |
| Inlet/Outlet Fitting Connections |
3⁄4” – 1.25” Male BSPT 3⁄4” – 1.5” Sweat 3⁄4” – 1.5” Solvent |
3⁄4” – 1.25” Male BSPT 3⁄4” – 1.5” Sweat 3⁄4” – 1.5” Solvent |
| Valve Material Cycles Regeneration |
Noryl (2) Up to 6 Downflow/Upflow |
Noryl (2) Up to 9 Downflow/Upflow |
| Operating Pressures Operating Temperatures |
1.4 – 8.6 bar 4° – 43° C |
1.4 – 8.6 bar 4° – 43° C |
| Meter: Flow Rate Range Volume Range (cubic meters) Totalizer |
.95 – 102 lpm .07 – 189m3 Yes |
.95 – 102 lpm .10 – 2000.0m3 Yes |
| Distributor Pilot | 1.050 O.D. Pipe | 1.050 O.D. Pipe |
| Drain Line Connection | 3⁄4” Male NPT Standard 1” Male NPT Optional |
3⁄4” Male NPT Standard 1” Male NPT Optional |
| Brine Line Connection | 3⁄8” or 1⁄2” O.D. Poly Tube Compression |
3⁄8” or 1⁄2” O.D. Poly Tube Compression |
| Mounting Base Options | 21⁄2” – 8 NPSM | 21⁄2” – 8 NPSM |
| Height From Top of Tank | 187mm | 187mm |
| Shipping Weight | 2 Kg | 2 Kg |
| Electrical: Supply Voltage Supply Frequency Output Voltage Output Current |
230V AC 50 Hz 12V AC 500 mA |
230V AC 50 Hz 12V AC 500 mA |
1. Filter tank size calculated @ 407 lpm per m2 of bed area/10 gpm of backwash per square foot of bed area
2. Noryl is a trademark of Sabic Innovative Plastics IP B.V. Company
1” Water Specialist Valve Specifications

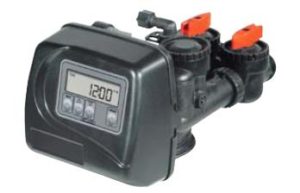

 WS1EI WS1SQ |

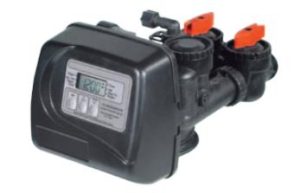

 WS1TC |
| 102 lpm, 6.1 m3/h (includes meter and bypass) 102 lpm, 6.1 m3/h (includes bypass) |
102 lpm, 6.1 m3/h (includes meter and bypass) 102 lpm, 6.1 m3/h (includes bypass) |
| 6”- 21” diameter 6”- 21” diameter |
6” – 21” diameter 6” – 21” diameter |
| 3⁄4” – 1.25” Male BSPT 3⁄4” – 1.5” Sweat 3⁄4”- 1.5” Solvent |
3⁄4” – 1.25” Male BSPT 3⁄4” – 1.5” Sweat 3⁄4” – 1.5” Solvent |
| Noryl (2) Up to 6 Downflow/Upflow |
Noryl (2) Up to 6 Downflow |
| 1. – 8.6 bar 4°- 43° C |
1.4 – 8.6 bar 4° – 43° C |
| .95 – 102 lpm .0 – 5700m3 Yes |
Not Applicable |
| 1.050 O.D. Pipe | 1.050 O.D. Pipe |
| 3⁄4” Male NPT Standard 1”Male NPT Optional |
3⁄4” Male NPT Standard 1” Male NPT Optional |
| 3⁄8” or 1⁄2” O.D. Poly Tube Compression |
3⁄8” or 1⁄2” O.D. Poly Tube Compression |
| 21⁄2” – 8 NPSM | 21⁄2” – 8 NPSM |
| 187mm | 187mm |
| 2Kg | 2 Kg |
| 230V AC or 6AA NMHB 50 Hz 12V AC 500 mA |
230V AC 50 Hz 12V AC 500 mA |
Valves shown with optional bypass.
更多资料可参考产品手册 2722_CVFA_INTERNATIONAL
